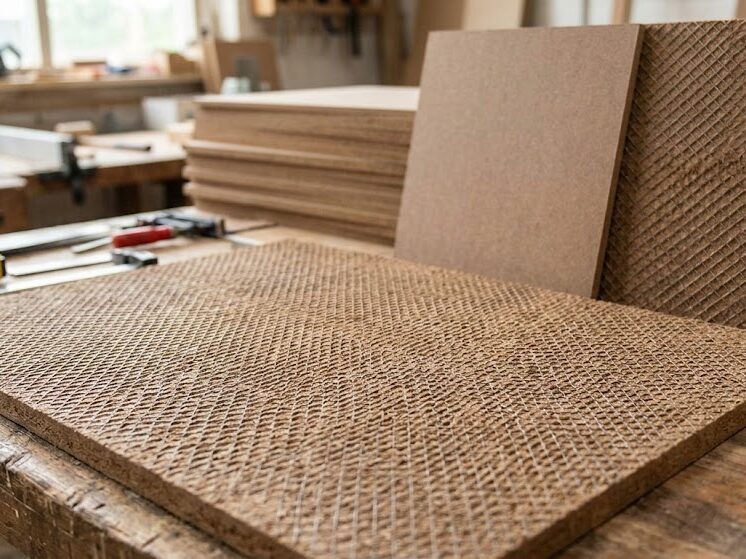

Hardboard with a visible mesh pattern is produced using a wet process in which wood fibers are pressed onto a metal mesh under heat and pressure. The metal mesh acts as an important component in this process, as it drains water during production while leaving behind a structured, mesh-marked side. The result is a hardboard sheet with a unique pattern on one side, giving it a specific aesthetic and function.
Table of contents
This type of hardboard, also known as S1S (Single Side Smooth), has a smooth finish on one side, while the other side retains the visible mesh pattern. It is specially designed for indoor use and is widely used in various construction applications, such as cabinet backs, but also in other structural applications where the structure of the material does not need to be visible.
The choice to use metal mesh in the production of this hardboard has several advantages. It provides greater stability to the material and makes it possible to deliver a sleek and uniform product. In addition, the mesh contributes to the strength of the hardboard, while remaining light and flexible. The use of this specific process makes hardboard with a visible mesh pattern a durable and functional choice for various interior projects.
Material types
Stainless steel:AISI 304L
Other materials:Bare iron mesh
Wire diameter0.60 mm to 1 mm
Opening1.10 mm to 2.08 mm
Width1320 mm to 1700 mm
